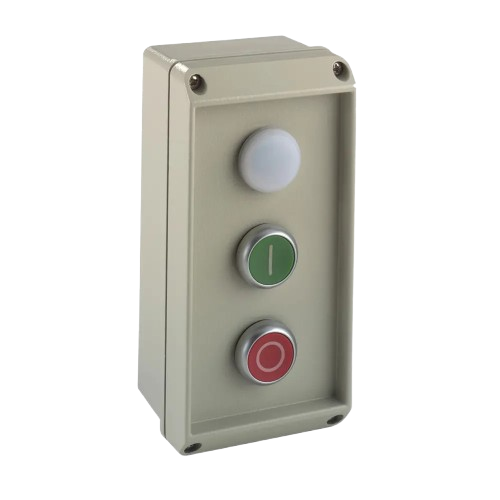

conTROL – aluminiumkapsling

Egenskaper

FEATURES

• Robust and attractive shielded controller
  enclosures
• Ideal for all types of industrial equipment
• Deep recessed lid protects control buttons
• Excellent EMC performance with integrated
  contact ridges in the base section
• Contact ridges are compressed by lid section without the need for expensive EMC gaskets
• Attractive bevelled lid with captured lid screws
• Weatherproof and waterproof
• Internal screw bosses for mounting
  plates, PCB supports, Din-Rails etc.
  (M4 or M6 self-tapping screws included)

Technical Data / Options

• IP rating:
  • IP66 / EN 60529
  • IP67 on request (Option code PLUS)
• Material:
  • Die-cast aluminium EN AC-44300 DIN EN 1706 (GD Al Si 12/DIN 1725)
  • 1° mould slope for moulding ejection
• Finish / colour:
  • Powder coat, silky grey, RAL 7032
  • Special finishes & colours on request
  • Option code L: Corrosion proof coating
• Lid gasket:
  • Standard: Thermoplastic TPE gasket (silicone free), -40°C to +120°C
  • Option code PLUS: Neoprene gasket, -30°C to +100°C (IP67)
  • Option code D: Silicone gasket, -50°C to +140°C
• Lid screws:
  • Captured stainless steel screws
• Certification:
  • GOST R (Russian Standards)
• Mounting:
  • Separate screw ports outside of the enclosure interior
• Technical Notes:
  • Specifications may change without prior notice
  • Please confirm critical specifications with our sales team before ordering
  • No liability accepted for typographical or other errors
